Multilevel Circulation Fully-Automatic Parking System

The premium fully automatic parking system that moves cars in a chain fashion

The MLCS creates multiple spaces in a limited floor space

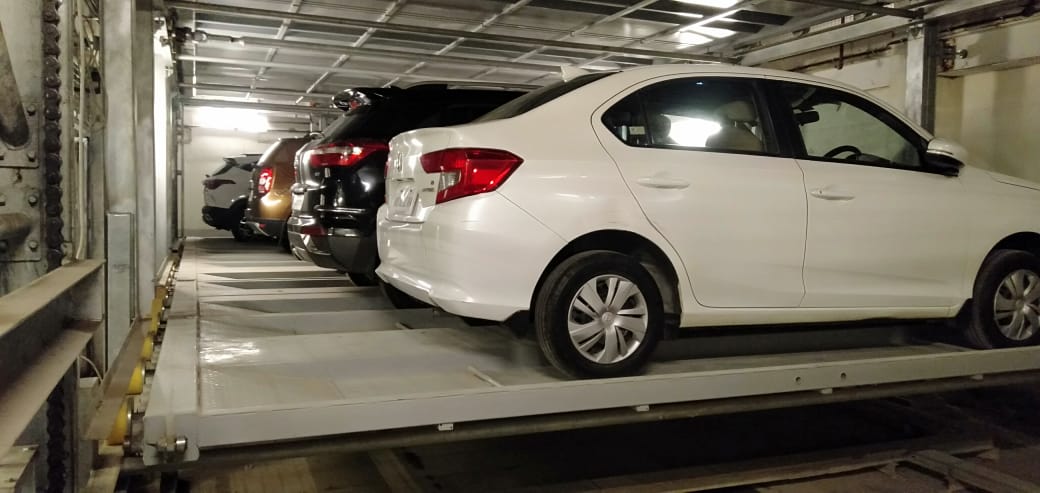

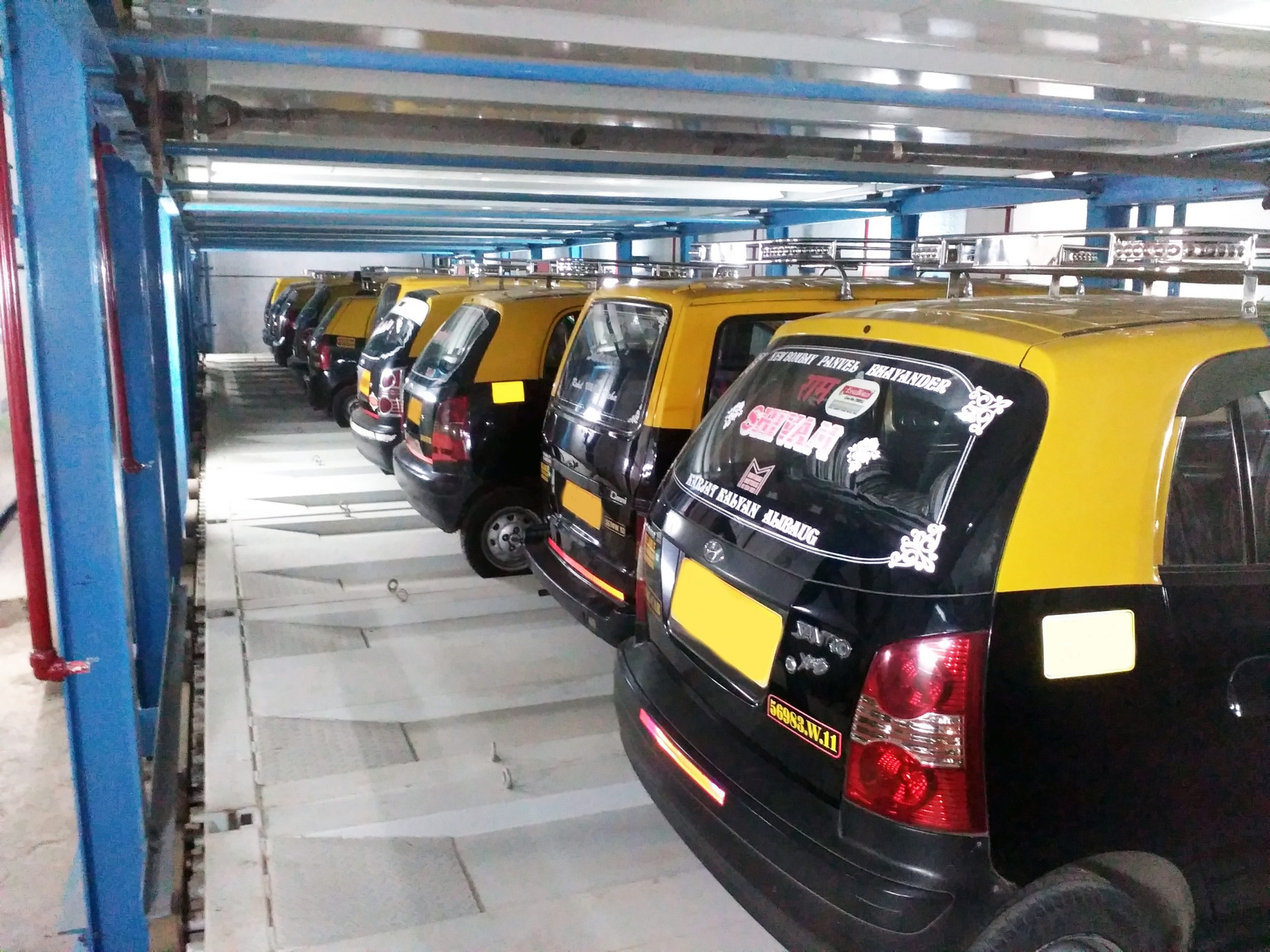

A smart solution for premises that require a large number of parking spaces, but there is only limited floor space. The Multilevel Circulation System from KLAUS Multiparking provides several parking levels and makes optimum use of the floor space of a property. The systems can be installed both above ground and underground or as a combination of both variants. Once parked in an entry room, a car is taken underground by an intelligent mechanism that moves the number of cars in a chain fashion.

The desired car is called to an entry room for retrieval by intelligent software. The car owners can park and retrieve cars only in entry rooms situated at the ground levels.

In addition to systems for standard car dimensions and weights, customized solutions are available on request. Of course, in many instances, the system can be adapted to your individual project requirements

Product Demo

All the information relating to Multilevel Circulation Fully-Automatic Parking System

Specifications:

Suitable for all passenger cars according to the clearance and maximal surface load

Maximum Weight Carrying Capacity: 2200kg – 2500kg
Allowable Car Height: 1.5m – 2.0m
Platform Width: 1.9m – 2.0m

For more specific information, please download a complete datasheet of the product.

Key Benefits:

Ideal for residential buildings and commercial projects
Increases the capacity of underground parking spaces at hospitals, malls, cinema halls, hotels etc.
The amount of space used can be reduced by up to 50 percent – compared to conventional parking spaces
Leaves the building space that is saved for additional parking spaces or more profitable purposes
Extendable up to 2-5 levels and 3-8 grids
Can accommodate up to 8–42 cars
Customizable as per the requirements of levels and grids
Customizable up to 8 cars per parking level & further upon request
Variable car dimensions: length, width possible as an option, height can be selected to suit requirements but must be uniform
Extended vehicle weighing capacity available as an option upon request
Lift for vertical transportation to the respective parking levels and for transferring the vehicle to the storage area
Chain-drive mechanism for horizontal movement
Quick parking & retrieval cycle with 99% uptime
Accommodates cars safely
Protection from theft and damage
Operation: access control via RFID tags, touch screens
Motion sensors for human safety
Eco-friendly as no CO2 emission from the car during operation
Low operational noise (less than 65dB)
